Orbital Aero Model: Collisions


In addition to gravity pulling bodies together, atmospheric drag affecting bodies near each other, and friction for bodies in contact, I wanted to accurately model the impact of bodies - collisions.

There are 3 types of collisions:

Elastic - Partial bounce (some stick). The degree of elasticity is called the coefficient of restitution, a value between 0.0 and 1.0. The higher the coefficient, the more the bounce.

Perfectly Elastic - No loss of kinetic energy, perfect bounce. The coefficient of restitution is 1.0. In reality there are no perfectly elastic collisions but billiard balls impacting are a rough real world example.

Perfectly Inelastic (Plastic) - Bodies stick together upon impact. The coefficient of restitution is 0.0.

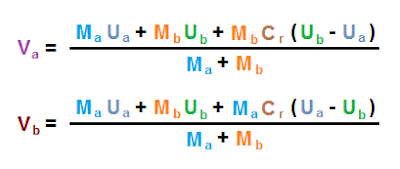

Ua = Primary Body Approach Speed
Ub = Secondary Body Approach Speed
Ma = Primary Body Mass
Mb = Secondary Body Mass
Cr = Coefficient of Restitution, 0 = Inelastic, 1 = Elastic
Va = Primary Body Departure Speed
Vb = Secondary Body Departure Speed

https://en.wikipedia.org/wiki/Collision
https://en.wikipedia.org/wiki/Elastic_collision
https://en.wikipedia.org/wiki/Inelastic_collision
https://en.wikipedia.org/wiki/Coefficient_of_restitution

Orbital Aero Code - update()


A refresher of our update() function in the OrbitalAeroModel class.

// Primary function to process the physics and kinematics all bodies.
bool OrbitalAeroModel::update(double timeStep_seconds)
{
 // It's important all forces are calculated before all positions are updated before all collisions
 // are checked, etc. That way the order in which bodies are looped through does not affect how they
 // affect other bodies in space.

 // Calculate Motor Thrust (From control system and motor abilities.)

 // Sum all the forces acting on every body, including forces from thrust, gravity, atmospheric drag,
 // and friction.
 processForces();

 // Can now translate and rotate each body.
 processKinematics(timeStep_seconds);

 // After moving the body, check for collisions and adjust positions/velocities as appropriate.
 processCollisions(timeStep_seconds);

 return true;
}

Orbital Aero Code - processCollisions()


// Handle collisions between bodies.
bool OrbitalAeroModel::processCollisions(double timeStep_seconds)
{
 // Loop through all bodies and check for collisions.
 // Unlike the forces calculations, not every body needs to be run through in the secondary loop.
 // For example, if you have 4 bodies, the following loops will process as follows:
 // Primary 1  Secondary 2
 // Primary 1  Secondary 3
 // Primary 1  Secondary 4
 // Primary 2  Secondary 3
 // Primary 2  Secondary 4
 // Primary 3  Secondary 4

 // Primary loop is through all bodies.
 map <uint64, BodyModel>::iterator iteratorPrimaryBody = tableBodies.begin();
 while (iteratorPrimaryBody != tableBodies.end())
 {
  BodyModel &primaryBody = iteratorPrimaryBody->second;
  if (primaryBody.active)
  {
   // Secondary loop begins one after the primary body iterator.
   map <uint64, BodyModel>::iterator iteratorSecondaryBody = iteratorPrimaryBody;
   iteratorSecondaryBody++;

   // Continue the secondary loop to the end of the bodies list.
   while (iteratorSecondaryBody != tableBodies.end())
   {
    BodyModel &secondaryBody = iteratorSecondaryBody->second;
    if (secondaryBody.active && (&primaryBody != &secondaryBody))
    {
     // Calculate the distance betweeen bodies.
     Vector relativeDistance_meters = secondaryBody.location_meters - primaryBody.location_meters;
     double relativeDistanceMagnitude_meters = relativeDistance_meters.magnitude();

     double combinedRadii_meters = primaryBody.radius_meters + secondaryBody.radius_meters;

     // Do the bodies occupy the same space?
     if (relativeDistanceMagnitude_meters < combinedRadii_meters && relativeDistanceMagnitude_meters > 0)
     {
      // Potential impact. Get elevation at that location (convert to geodetic).
      // Not loading terrain yet, just do the impact.
      // Coefficient of Restitution
      // 0 = Perfectly Plastic, objects remain together
      // 1 = Perfectly Elastic, kinetic energy conserved / bounce
      double Cr = 0.5;

      //  Primary body impacting secondary body.
      //
      //    Approach-->  \   |
      //                  \  |
      //                   \ | <-- Surface
      //    Normal--> /_____\|
      //              \     /|
      //                   / |
      //                  /  |
      //   Departure--> |/_  |
      //

      // Take the dot product of the velocity vector with the normal surface to get the magnitude of the impact speed.
      Vector vectorNormalToImpact = -relativeDistance_meters.unit();
      double primaryBodyPerpendicularApproachSpeed_metersPerSecond = Vector::dotProduct(primaryBody.velocity_metersPerSecond, vectorNormalToImpact);
      double secondaryBodyPerpendicularApproachSpeed_metersPerSecond = Vector::dotProduct(secondaryBody.velocity_metersPerSecond, vectorNormalToImpact);

      // Determine departure speeds based on coefficient of restitution, perpendicular speeds, and masses.
      // Va = (Ma * Ua + Mb * Ub + Mb * Cr * (Ub - Ua)) / (Ma + Mb)
      // Vb = (Ma * Ua + Mb * Ub + Ma * Cr * (Ua - Ub)) / (Ma + Mb)
      // Ua = Primary Body Approach Speed
      // Ub = Secondary Body Approach Speed
      // Ma = Primary Body Mass
      // Mb = Secondary Body Mass
      // Cr = Coefficient of Restitution, 0 = Inelastic, 1 = Elastic
      // Va = Primary Body Departure Speed
      // Vb = Secondary Body Departure Speed

      double primaryBodyPerpendicularDepartureSpeed_metersPerSecond =
       (primaryBody.massTotal_kilograms() * primaryBodyPerpendicularApproachSpeed_metersPerSecond +
        secondaryBody.massTotal_kilograms() * secondaryBodyPerpendicularApproachSpeed_metersPerSecond +
        secondaryBody.massTotal_kilograms() * Cr * (secondaryBodyPerpendicularApproachSpeed_metersPerSecond - primaryBodyPerpendicularApproachSpeed_metersPerSecond)) /
       (primaryBody.massTotal_kilograms() + secondaryBody.massTotal_kilograms());

      Vector primaryPerpendicularChange_metersPerSecond = vectorNormalToImpact * (primaryBodyPerpendicularDepartureSpeed_metersPerSecond - primaryBodyPerpendicularApproachSpeed_metersPerSecond);
      primaryBody.velocity_metersPerSecond += primaryPerpendicularChange_metersPerSecond;

      double secondaryBodyPerpendicularDepartureSpeed_metersPerSecond =
       (primaryBody.massTotal_kilograms() * primaryBodyPerpendicularApproachSpeed_metersPerSecond +
        secondaryBody.massTotal_kilograms() * secondaryBodyPerpendicularApproachSpeed_metersPerSecond +
        primaryBody.massTotal_kilograms() * Cr * (primaryBodyPerpendicularApproachSpeed_metersPerSecond - secondaryBodyPerpendicularApproachSpeed_metersPerSecond)) /
       (primaryBody.massTotal_kilograms() + secondaryBody.massTotal_kilograms());

      Vector secondaryPerpendicularChange_metersPerSecond = vectorNormalToImpact * (secondaryBodyPerpendicularDepartureSpeed_metersPerSecond - secondaryBodyPerpendicularApproachSpeed_metersPerSecond);
      secondaryBody.velocity_metersPerSecond += secondaryPerpendicularChange_metersPerSecond;

      // Reposition the entities based on the "bounce".
      primaryBody.location_meters += primaryBody.velocity_metersPerSecond * timeStep_seconds;
      secondaryBody.location_meters += secondaryBody.velocity_metersPerSecond * timeStep_seconds;

      // Recalculate the distance, ensure we're still not occupying the same space.
      Vector relativeDistanceAfterMovement_meters = secondaryBody.location_meters - primaryBody.location_meters;
      double relativeDistanceAfterMovementMagnitude_meters = relativeDistanceAfterMovement_meters.magnitude();

      if (relativeDistanceAfterMovementMagnitude_meters < combinedRadii_meters)
      {
       // Still occupying the same space, reposition the less dense mass outside.
       Vector unitVectorToIntercept = relativeDistanceAfterMovement_meters.unit();
       if (primaryBody.massBase_kilograms > secondaryBody.massBase_kilograms)
       {
        secondaryBody.location_meters = primaryBody.location_meters + (unitVectorToIntercept * (combinedRadii_meters + 0.01));
       }
       else
       {
        primaryBody.location_meters = secondaryBody.location_meters + (-unitVectorToIntercept * (combinedRadii_meters + 0.01));
       }
      }
     } // (relativeDistanceMagnitude_meters < combinedRadii_meters && relativeDistanceMagnitude_meters > 0)
    } // ((secondaryBody.active) && (primaryBody.index != secondaryBody.index))
    iteratorSecondaryBody++;
   } // (iteratorSecondaryBody != tableBodies.end())
  } // (primaryBody.active)
  iteratorPrimaryBody++;
 } // (iteratorPrimaryBody != tableBodies.end())
 return true;
}

Results


Two bodies impacting with a coefficient of restitution of 1.0


Two bodies impacting with a coefficient of restitution of 0.5


Two bodies impacting with a coefficient of restitution of 0.0


How about a game of billiards?

Ball approaching (slightly off angle)...


After impact...

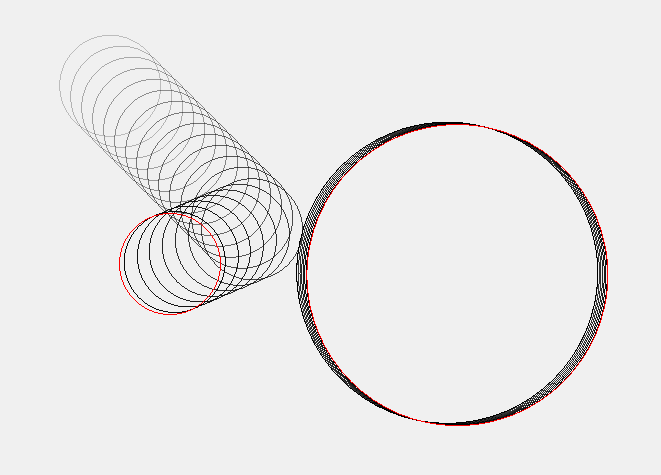

And finally impacting something with a much higher mass...
